5 Confidential Production Techniques About Quality Nitrile Gloves
May 07 , 2022

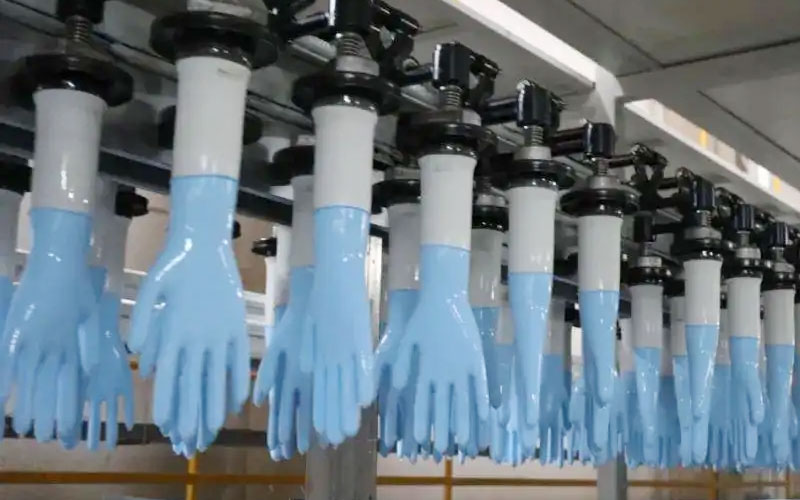

A Kind of Nitrile Wear-resistant Dipped Gloves
The technology belongs to the technical field of dipped gloves, in particular to a nitrile wear-resistant dipped glove, which is composed of the following raw materials by weight: 40-60 parts of nitrile emulsion, 3-6 parts of sodium montmorillonite, 18-20 parts of aramid fiber, 10-20 parts of talc, 10-12 parts of flake graphite, 1-2 parts of stearyl alcohol, 2-3 parts of linoleic acid, 0.5-1 part of sodium lauryl sulfate; The technology can control the connection between the clamping block and the clamping slot through the setting of the clamping slot, the clamping block, the cylindrical empty slot and the movable insertion rod. When the clamping block and the clamping slot are in the connected state , at this time, the hand can be pulled out from the inner layer of the inner cotton glove at will, and the inner layer of the cotton glove will not be pulled out from the inner layer of the outer waterproof glove, which will not affect the next wearing of the glove. When the groove and the clamping block are in a disengaged state, the inner layer of cotton gloves can be pulled out from the inside of the outer layer of waterproof gloves, and then the inner layer of cotton gloves can be cleaned, disinfected and dried, which is convenient to use.
A Kind of Biodegradable Nitrile Gloves and Formulation Technology
The present technology provides a degradable nitrile medical glove and its formulation technology. The principle is to add acrylonitrile grafted starch components that are biodegradable and have good compatibility with nitrile latex. The emulsion formulation includes nitrile latex, acrylonitrile grafted starch, antioxidants, sulfur, zinc oxide, accelerators, potassium hydroxide. The tensile strength of the gloves prepared by this technology can reach 21MPa, the elongation at break can reach 521%, and the degradation rate can reach 60%.
Disposable Nitrile Glove With Function of Preventing Sweat Accumulation and Formulation Technology Thereof
The present technology provides a disposable nitrile glove with the function of preventing sweat accumulation. The nitrile glove is provided with a sweat and water vapor discharge structure, and is composed of three layers of adhesive films, namely an inner layer adhesive film, a middle layer adhesive film, and an outer layer adhesive film. layer of adhesive film. The latex for forming the film is mainly composed of nitrile rubber and related auxiliary materials. The inner layer adhesive film is added with polylysine and dopa, the middle layer adhesive film is added with nano iron powder, and the outer layer adhesive film is added with nanometer manganese dioxide. The nitrile glove is also provided with an acid-base indicator strip and an organic solvent indicator strip. The present technology also provides a disposable nitrile glove formulation technology. The disposable nitrile gloves made of the formula technology of this technology can reduce or avoid the accumulation of sweat and water vapor on the hands, reduce the itching of the hands during wearing, indicate the risk of damage, and reduce the impact of ozone on the strength of the film. Indicates whether it is contaminated with contaminants such as acid and alkali, organic solvents, etc.
A Kind of Formulation Technology of Environmentally Friendly Heat-sensitive Nitrile Protective Gloves
The present technology relates to a formulation technology for environmentally friendly heat-sensitive nitrile protective gloves, which includes the steps: S1: cover the glove embryo on a glove mold and heat it up; S2: dip the glove embryo heated to a predetermined temperature in the heat-sensitive nitrile latex In the prevulcanized rubber compound; the heat-sensitive nitrile latex prevulcanized rubber compound comprises 90-120 parts by mass of the nitrile pre-vulcanized rubber compound, 0.5-6 parts by mass of a stabilizer and 0.2-9 parts by mass of a destabilizing agent; the destabilizing agent It is a substance that reduces the stability of the latex and gels under the condition of heating and heating; after the preparation of the nitrile pre-vulcanized rubber compound is completed, it is first stored at room temperature, and then before the dipping, the stabilizer and The destabilizing agent is added to the nitrile pre-vulcanized rubber compound and stirred evenly; S3: vulcanization and drying to obtain environmentally friendly heat-sensitive nitrile protective gloves. The technology does not require pre-preparation of coagulants and infiltration coagulants, reduces the production process of nitrile-coated gloves, shortens the production line, reduces the application of harmful substances such as methanol, and improves the production environment.
A Kind of Lengthening and Thickening White Food-grade Nitrile Gloves and Formulation Technology Thereof
The present technology provides a kind of lengthened and thickened white food-grade nitrile gloves and formulation technology thereof, and specifically relates to the technical field of glove preparation, including nitrile gloves, the nitrile gloves include an outer layer and an inner layer, and the length of the nitrile gloves is It is 380?420mm and the thickness is 11?15mil. The length of the gloves produced by this technology can reach the human elbow, and the thickness of the product can be increased after two times of dipping in the production process. This product has a wider range of applications.
(* Reprinted and translated from zxmw.com, if there is any infringement, please contact to delete it!)
+86-13779966500, 086-592-5566387
enquiry@ticarehealth.com
