1. Four work modes: CPAP,S,T,S/T
2. APCV mode: Assist pressure control ventilation
3. Dynamically monitor the treatment effect
4. Real-time alarm in case of failure
5. Light weight: 2.0kg
Assistant therapy of respiratory disease,PHD(Pulmonary heart disease),COPD(chronic obstructive pulmonary disease),Motor neurons.
More Details:
Model |
TC-CPAP-1 |
Screen |
3.5 Inch color TFT |
Work mode |
CPAP,S/T,S,T |
Inspiration Pressure |
4-30cmH2O |
Inspiration sensitivity |
Auto,1-6 level |
Expiration Pressure |
4-25cmH2O |
Inspiration sensitivity |
Auto,1-6 level |
Accuracy |
±0.5cmH20 |
Belex |
1-3 level (2-4cm H2O), makes the expiration more comfortable |
Ramp |
0-60min |
Islop |
1-6 Level |
Inspiration time |
0.5-4.0s |
Noise |
<30dB |
Auto On/Off |
Auto off while tube/mask off, Auto on when it detects breath |
Leakage compensation |
Yes |
Humidifier |
Yes |
Parameter monitor |
Flow/Press/BPM/VT/MV/LK/InspT/SpO2(Optional)/PR(Optional) |
Realtime Alarm |
Power failure/Low voltage/Airway Block/Low MV/High Leakage/humidifier failure/TF card full/High Pressure/Low Pressure/Replace Filter |
Data download |
TF Card 8G |
Self-diagnostic questionnaire(Epworth) |
Yes, makes patient understand the potential breathing apnoea by himself. |
Net Weight/Size |
2.2kg, 280*200*112mm(Host+humidifier) |
Gross Weight/Size |
4.6KG,375*290*235mm
|
Warranty |
2 years |
Type | CPAP breathing machine for Hospital |

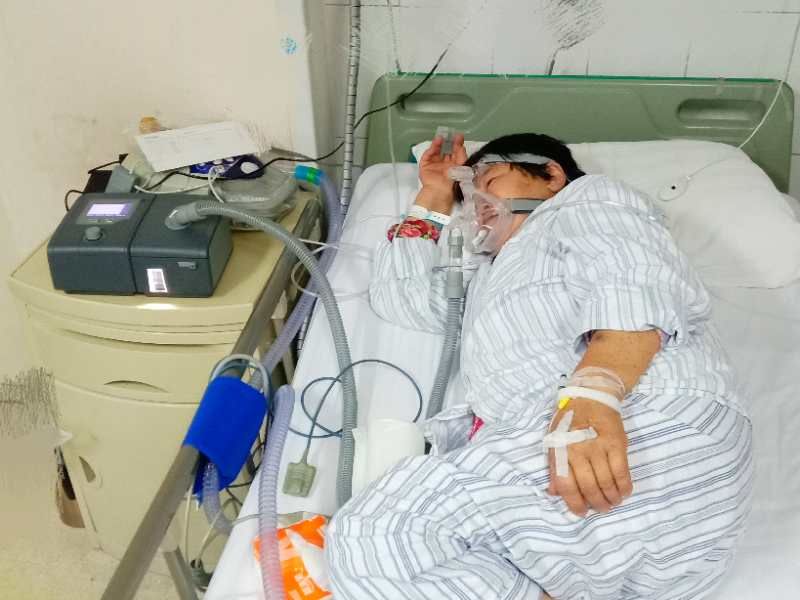

Application:
