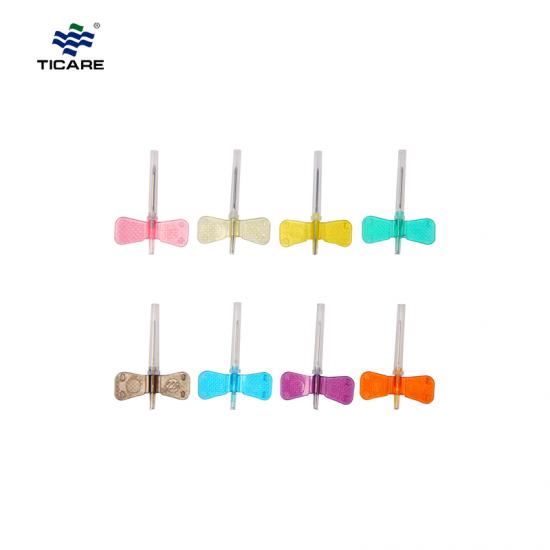

TICARE® Butterfly Needles are ideal for blood sampling and small infusions. Excellent soft wing to skin surface to reduce incompatibilities.
Specification
Cannula: Thin-walled stainless steel needle
Wings: Medical grade PVC, color coded flexible wings for easy handling
Tube capacity: medical grade PVC, 300mm tube length is 0.43mL
Connector: Lock hard connector (luer lock); soft connector (luer slip) available on request
Tube Length: 12" (300mm), available upon request
Latex free
Sterilization: ETO
Packing: blister/box/carton
Wing Color | Needle Gauge (mm) | Wing Length | Tube length |
Pink | 18G (1.2mm) | 3/4" (19mm) | 12" (300mm) |
Brown | 19G (1.1mm) |
3/4" (19mm) |
12" (300mm) |
Yellow | 20G (0.9mm) |
3/4" (19mm) |
12" (300mm) |
Green | 21G (0.8mm) |
3/4" (19mm) |
12" (300mm) |
Black | 22G (0.7mm) |
3/4" (19mm) |
12" (300mm) |
Light Blue | 23G (0.6mm) |
3/4" (19mm) |
12" (300mm) |
Red | 24G (0.55mm) |
3/4" (19mm) |
12" (300mm) |
Blue | 25G (0.5mm) |
3/4" (19mm) |
12" (300mm) |
Beige | 26G (0.45mm) |
3/4" (19mm) |
12" (300mm) |
Grey | 27G (0.4mm) |
3/4" (19mm) |
12" (300mm) |
Features
- Disposable scalp vein set for venipuncture and intravenous infusion
- Two wings ensure easy and safe positioning on the skin
- Flexible elastic extension tube facilitates safe injection away from the venipuncture site, reducing the risk of displacement
- The injection needle made of high-grade stainless steel has three beveled edges to ensure atraumatic and painless vascular access
- Wide range of tip hubs (Luer Slip, Luer Lock) for choice
- Color coding (according to ISO standards) helps in correct selection of scalp vein groups
- Wide range of needle sizes and lengths (from 18G to 27G) to choose from, allowing correct selection of scalp vein sets based on vein diameter and aqueous solution viscosity
